Alignment systems

AT-400

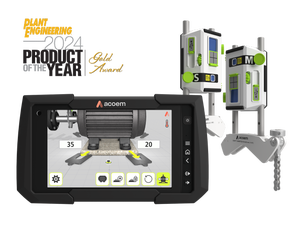

Its Dual Sweep method captures accurate measurements during shaft rotation, ensuring optimal alignment. Benefit from Dual Multipoint for diverse scenarios, capturing multiple points for precise calculations. Cloud connectivity streamlines report sharing, while the lifetime warranty underscores its reliability.

Trust the Acoem AT-400 for robust dual-axis sensors and unparalleled versatility. Explore various measurement programs for horizontal, vertical, flatness, and soft foot conditions.

AT-300

Welcome to the future of laser measurement technology with the Acoem AT-300, the next-generation digital line laser system engineered for exceptional performance. With extensive software functionality, a streamlined user interface, and intelligent sensor technology, the Acoem AT-300 is designed to revolutionize your experience across various applications.

At the heart of the Acoem AT-300 lies a commitment to excellence in various measuring methods. Our cutting-edge technology ensures swift and accurate results, enhancing both performance and precision. Say goodbye to guesswork and hello to precise measurements every time.

AT-200

This new generation of horizontal & vertical laser shaft alignment solution is the result of almost 40 years of expertise and innovation.

Integrated apps, customized technology features and easy connectivity : the AT-200 leverages technology to enhance your user experience and improve the efficiency of your maintenance teams. Providing unparalleled measurement performance and fast, precision alignment, the AT-200 improve measurement and reporting capabilities, to help you extend every critical machinery’s lifespan.

AT-100

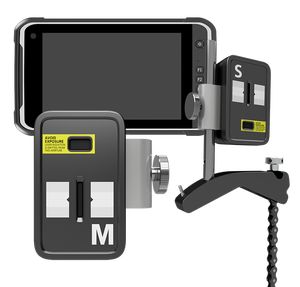

AT-100 is an app-based alignment tool that combines integrated apps, patented technology, and easy connectivity. The AT-100 is suitable for entry-level to expert shaft alignment work, the AT-100 shaft alignment tool provides high measurement flexibility. The intuitive tool works with the shaft alignment apps on a tablet or smartphone. It is simple to use and doesn’t require any special training. The AT-100 shaft alignment solution is the result of almost 40 years of shaft alignment expertise and innovation, leveraging the latest technology to enhance your user experience.

ECO Mitsubishi

The ECO MITSUBISHI is custom-made with firmware and fixtures designed specifically for Mitsubishi turbines: 1000, 1000A, MWT 2.4. These precisely designed fixtures make generator-to-gearbox alignment easy inside any nacelle – safeguarding reliability and optimizing the energy efficiency of the wind turbine.

EVO ACCIONA

The EVO ACCIONA is custom-made with firmware and fixtures designed specifically for Acciona turbines. These precisely designed fixtures make generator-to-gearbox alignment easy inside any nacelle – safeguarding reliability and optimizing the energy efficiency of the wind turbine.

NXA GAMESA

The NXA GAMESA is custom-made with firmware and fixtures designed specifically for Gamesa turbines: G80x, G90x, G114, G126, G132, G145. These precisely designed fixtures make generator-to-gearbox alignment easy inside any nacelle – safeguarding reliability and optimizing the energy efficiency of the wind turbine.

ECO VESTAS

The ECO VESTAS is custom-made with firmware and fixtures designed specifically for Vestas turbines.

V1 Bracket: V44, V47, V52, V63, V66, V80, V90, V100, V110
V2 Bracket: V105, V112, V113, V117, V120, V126, V136, V150, V164

These precisely designed fixtures make generator-to-gearbox alignment easy inside any nacelle – safeguarding reliability and optimizing the energy efficiency of the wind turbine.

PAT

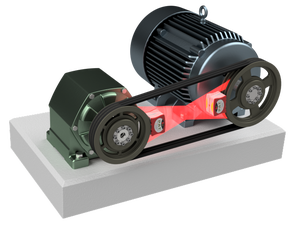

With the PAT, you are never in doubt about whether your belt transmissions are aligned or not. By using the groove as reference, you will achieve a precise alignment which reduces belt wear, bearing failures and vibrations.

Rectangular flatness measurements

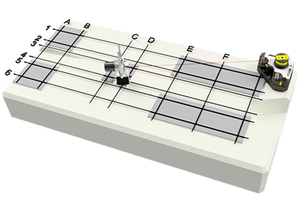

Typical applications are measurements of e.g. machine beds and machine foundations. For the latter application, it is particularly beneficial to combine flatness measurement with shaft alignment when installing rotating machinery. First, you check the foundation’s surface for possible irregularities, a so-called pre-alignment check. If any, adjust these. Install the machine and check for possible misalignment with a laser-based shaft alignment tool like the NXA Ultimate system.

NXA Ultimate

With the NXA Ultimate you have covered any kind of angle that needs to be covered of your machinery. It includes shaft alignment applications as well as geometric applications, hence, as the name says, it is an ultimate measurement tool.

Bore fixture kits

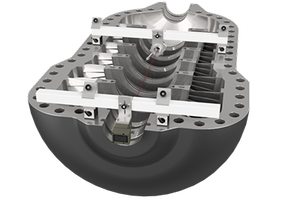

We offer several geometry fixture solutions and dedicated bore packages. The latter are complete packages, including both transmitter, receiver, and fixtures. In case you are dealing with turbines of large diameter ranges, you can extend the fixtures in different lengths thanks to our two accessory kits.

Straightness measurement

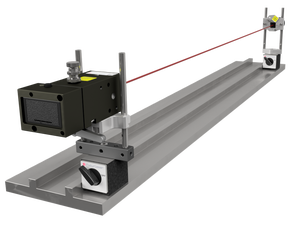

The straightness application is measured in two axes, where the laser beam is used as a reference. The deviation in distance between the laser beam and the measurement object is measured in two or more positions with the use of a receiver.

Bore measurements

Typical applications are full bore measurements, e.g. bearing journals for compressors and in diesel engines.

Circular flatness measurement

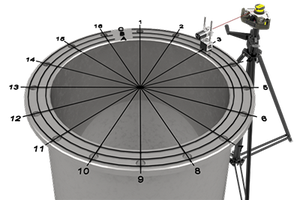

This application uses a laser plane as reference. The deviation in distance between the laser plane and the measurement object is measured in one or more positions with the use of the receiver. The program allows for up to three circles with 99 points in each circle to be measured. A typical application is the measurement of flanges and circular machine foundations.
